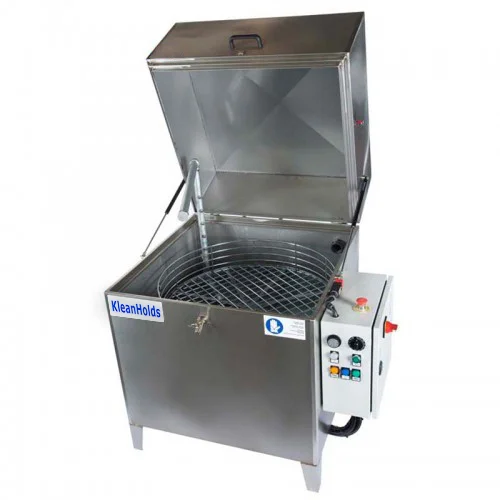

KleanHolds Model 3019-1


Specifications:

· Heater / Temperature – Room Temp - 170° F

· Max Load Weight - 330lbs

· Completely Assembled Dimensions:

w/ Lid Closed – 50”W X 43”D X 47”H

w/ Lid Open – 50”W X 47”D X 70”H

35.75” Minimum Transport Width

· One Pump, One Spray Manifold - 1 HP / 35 psi @ 24 gpm

· One Basket - 30" Diameter

· Working Height - 19" Max

· Available Voltages - 230V 1Ph 32Amps, 230V 3Ph 20Amps, 460V 3Ph 10Amps

· Wash Tank Capacity - 30 gal



KleanHolds Model 3519-1

Specifications:

· Heater / Temperature – Room Temp - 170° F

· Max Load Weight - 440lbs

·Completely Assembled Dimensions:

w/ Lid Closed – 57”W X 50”D X 51”H

w/ Lid Open – 57”W X 54”D X 76.5”H

41” Minimum Transport Width

· One Pump, One Spray Manifold - 2 HP / 34 psi @ 45 gpm

· One Basket - 35" Diameter

· Working Height - 19" Max

· Available Voltages - 230V 1Ph 37Amps, 230V 3Ph 23Amps, 460V 3Ph 13Amps

· Wash Tank Capacity - 46 gal



KleanHolds Model 3519-2

Specifications:

· Heater / Temperature – Room Temp - 170° F

· Max Load Weight - 440lbs

· Completely Assembled Dimensions:

w/ Lid Closed – 57”W X 50”D X 51”H

w/ Lid Open – 57”W X 54”D X 76.5”H

41” Minimum Transport Width

· Two Pumps, Two Spray Manifolds – 1.5 HP / 37 psi @ 30 gpm each

· Two Baskets - 35" Diameter

· Working Height - 19" Max

· Available Voltages - 230V 1Ph 40Amps, 230V 3Ph 25Amps, 460V 3Ph 14Amps

· Wash Tank Capacity - 46 gal



KleanHolds Model 4527-2

Specifications:

· Heater / Temperature – Room Temp -170° F

· Max Load Weight - 770lbs

· Completely Assembled Dimensions:

w/ Lid Closed – 65”W X 59”D X 60”H

w/ Lid Open – 65”W X 69”D X 89”H

56” Minimum Transport Width

· Two Pumps, Two Spray Manifolds – 2 HP / 37 psi @ 50 gpm each

· Two Baskets - 45" Diameter

· Working Height - 27" Max

· Available Voltages - 230V 1Ph 65Amps, 230V 3Ph 45Amps, 460V 3Ph 23Amps

· Wash Tank Capacity - 74 gal


Features of All KleanHolds Machines Include:

  • Heavy Duty Stainless Steel Construction

  • Ergonomic Design

  • Swing Away Spray Manifolds

  • Adjustable Wash Timer 0-60 minutes

  • Automatic Basket Rotation

  • Solution Filter

  • Adjustable Thermostat Controlled Electrical Heater SB 0-170°F

  • Automatic Low Liquid Level Shut Off

  • Tank Drain

  • Low Noise Operation
